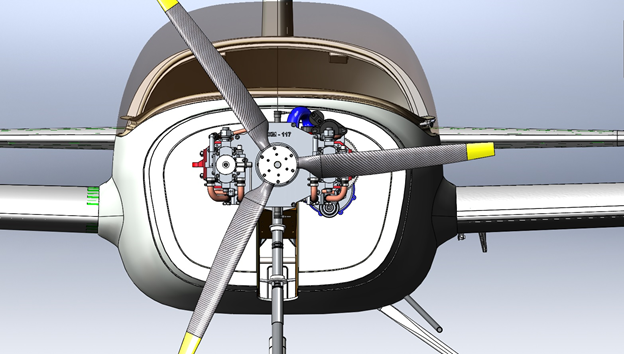

ACM-117 Aviation piston engine

ACM-117 Aviation piston engine

Designed for UL, LS and light aircrafts, auto gyro, helicopters and UAVs

Type - Opposite pistons, 2T
2 cylinder
Cooling system - oil type
Displacement - 1170 sm3
Integrated reduction gear box (ratio 1:2,5)
Torque max - 155 NM / 5800 rpm
Power max - 130 hp / 5800 rpm (no time limit)
Weight - 87 kg
Fuel consumption - 260 g*kW/h
Fuel - MOGAS 95 octane, AVGAS

Design AKM-AVIA
Russia, Perm, Novogayvinskaya st 81
+7 (342) 9082713358
